상세 정보 |
|||
| 모델 약속 어음: | LM156LFGL02 | 대각선 사이즈: | 15.6인치 |
|---|---|---|---|
| 결의안: | 1920년, 고정 헤드 디스크 141PPI | 활성 영역: | 344.16(W)×193.59(H)mm |
| 밝기: | 250 cd/m2 (Typ.) | 주파수: | 120Hz |
| 모양 스타일: | 호리호리합니다 (PCBA 플랫, T≤3.2mm) | 애플리케이션: | 랩탑 / 게임 |
| 강조하다: | LCD 스크린 패널,랩탑 LCD 스크린 집회,랩탑 LCD 화면 디스플레이 |
||
제품 설명

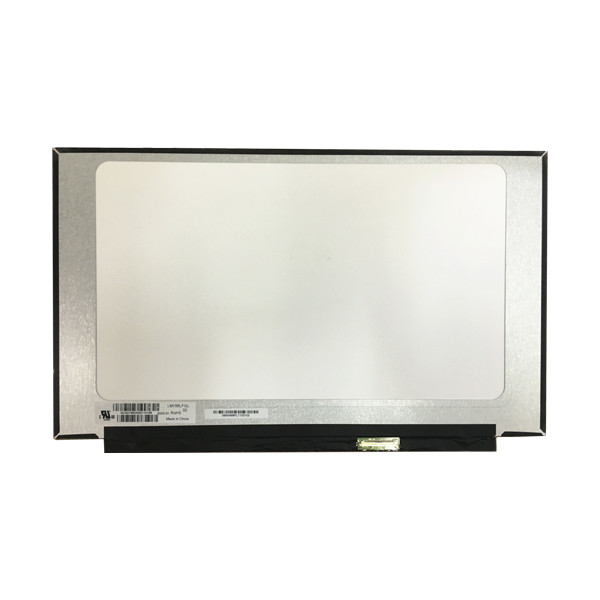

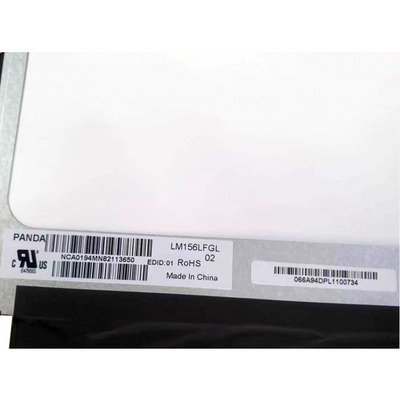

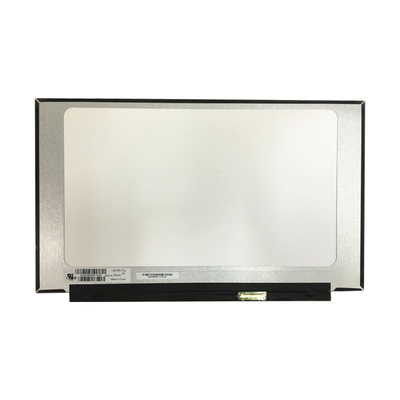

15.6 inch 1920(RGB)*1080 LCD screen Display FHD 120Hz LM156LFGL02 for Asus FX90J FX95G VX60G
LM156LFGL02 Product details :
| PANDA LCD Screen LM156LFGL02 (NCP0042) | |
| Brand | PANDA |
| Model | LM156LFGL02 (NCP0042) |
| Diagonal Size | 15.6 inch |
| Type | Oxide TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop / Gaming |
| Frame Rate | 120Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.4 Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 15.6 inch 1920(RGB)*1080 LCD screen Display FHD 120Hz LM156LFGL02 for Asus FX90J FX95G VX60G | |
LM156LFGL02 Attention:
Please check your computer model, resolution and screen specification before placing an order to ensure that our products match your model. If you are not sure what your screen specification is, please contact us in time. We will contact you within 24 hours.
LM156LFGL02 Payment :
1. We recommend Alipay to be safer.
LM156LFGL02 Shipping and Package :
LM156LFGL02 Shipping Details:
1: Please confirm your address carefully after placing an order. We will send you the product within 3 days after receiving the payment.
2: If you do not receive the product within 45 days, please contact us. And please give us 3 working days to check the undelivered package and the reason. If it is our fault, we will refund you.
LM156LFGL02 Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LM156LFGL02 Other:
1. We are not responsible for any duties or import duties.
2: All emails will be answered within 24 hours. If you do not hear back from us, please resend your email and we will reply to you. Thank you very much!
LM156LFGL02 FAQ:
Q: If I order LM156LFGL02 now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: Do you accept sample orders for LM156LFGL02 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of PANDA LM156LFGL02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: What happen if the LM156LFGL02 receive can't work ?
A: The PANDA LM156LFGL02 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
